Scope

Specifications Digital Storage Scope

Y - Channels

 - 10mV,20mV,50mV,100mV,200mV,500mV,1 Volt,2 Volt und 5 Volt je Teileinheit

• max Input Voltage 100 Volt
• Input impedanz 1M-Ohm , 30pF

Y modes

• channel A B   inverted
• channel A + channel B
• channel A -channell B
• interleave (signal channel A is passed to AD converter channel B and measured with inv clock. Consequently, the sample rate is increased to 150 MHz)

timebase

• 1 , 2, 5us, 10, 20, 50 us , 100, 200, 500us , 1, 2, 5mS,10 ,20 ,50mS,100 ,200 ,500mS
• Trigger level adjustable from 0 to max. Screen Y
• Trigger channel A,B or external
• Triggercursor Time and Level, Pretrigger adjustable

measuring

• Cursor A <> Cursor B Time
• Cursor A <> Cursor B Frequency
• Cursor A <> Cursor B  Voltage channel A oder B

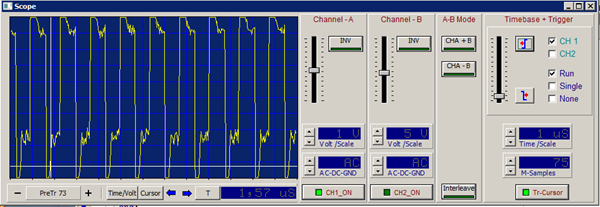

Measurement clock generator in a 1 MHz LLC mode power supply, trigger on the negative edge in the lower signal area, pretrigger 73 measuring points, 75 megasamples 1uS Screen / div, trigger channel A

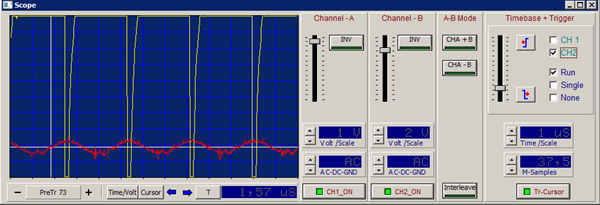

Measurement clock generator and the resonant circuit in a 1 MHz LLC mode power supply, trigger on the positive edge in the second Sine of the resonant circuit, pretrigger 73 measurement points, 37.5 megasamples 1uS Screen / div, trigger channel B

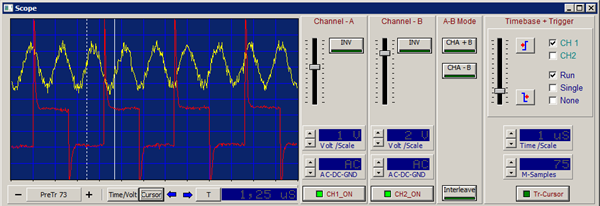

Measuring resonant circuit in a 1 MHz LLC mode power supply , trigger on the positive edge in the second Sine of the resonant circuit, pretrigger 73 measuring points, 75 megasamples 1uS Screen / div, trigger channel A and cursor measurement time (in this case 1.25 uS)
