EWOMISA is the Egg-laying wool milk sow for laboratory, production and development.

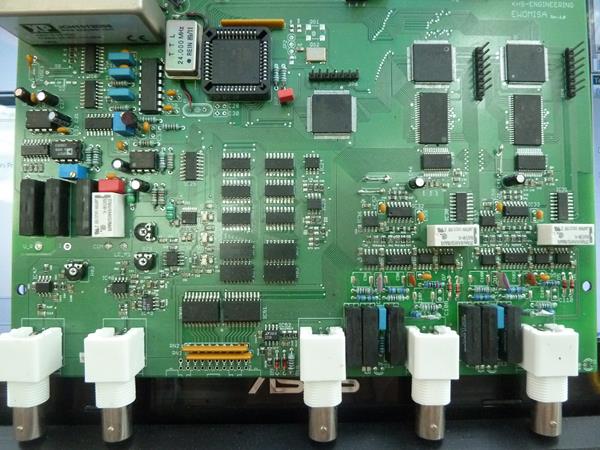

In the approximately 220 x 160 x 50 mm sized device are integrated

• 2 channel oscilloscope 75 M sample Y-300MHz bandwidth
• 16 channel Logicanalyser
• 150 Mhz Frequency Counter

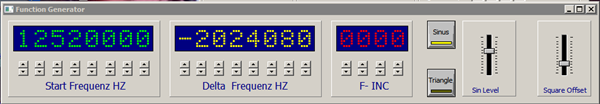

• 25 Mhz sweep - function generator
• Digital voltmeter
• LC measuring system

The operation is done over a PC via USB interface.

.

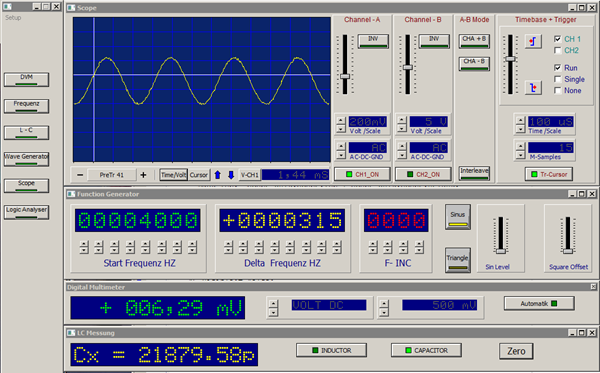

Image shows LC measuring system, digital voltmeter DC voltage 500 mV. Function generator 4000Hz to 4315Hz sine and opted measured on Scope with 15 mega samples. Measurement range is 200 mV / Scale.

Specifications Oscilloscope                  more info

• 2 Y canals DC - 300 MHz bandwidth
• maximum of 75 M samples or A and B channel interleaved with 150 M samples
• 10mV, 20mV, 50mV, 100mV, 200mV, 500mV, 1V and 5V Y resolution
• Trigger channel A and / or B or external
• Memory depth per channel 256k words
• AD converter 10 bit

Specifications LC Meter

• 0.01 pf capacitor to 10uF 1% measurement error
• 0,001 uH Inductance 100mH to 1% error
• autoranging
• self-calibrating

Specifications DMM

• Dual Slope ADC resolution 55000 points
• 10 measurements per second
• automatic / manual range selection

Technical data Function Generator

• 1 Hz to 25 MHz
• Sine triangular output 0 - 12 V
• Rectangular output 0 - 12 V
• pulse duty cycle adjustable
• positive and negative delta frequency to 9.999 MHz for wobble in max 4096 steps
