EWOMISA

Our newest project IN DEVELOPMENT!!

EWOMISA is the egg-laying wool milk sow for laboratory, production and development. For 2 years now, this project is in development.

Completion in late 2013. We are looking for that time for some companys can test this apparatus for a month. In addition to the measuring devices shown here at the moment, a 16 channel Logicanalyser, a function generator to 20 MHz and a frequency counter will be integrated to about 150 MHz. Level of development is Finisch layout version 2 , the Logicanalyser is integrated and second Time base for scope were inserted. Furthermore, the coupling to the PC over USB interface is now possible.

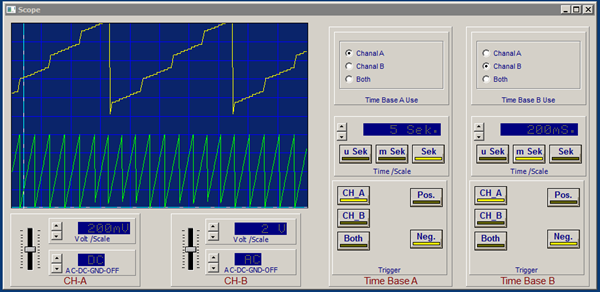

Specifications Oscilloscope

• 2 Y channels DC - 25 MHz bandwidth 60 M samples
• 10mV, 20mV, 50mV, 100mV, 200mV, 500mV 1V, 5V, 10V Y resolution
• two BWA time bases 1us to 10 seconds
• Trigger channel A or B or External
• 256kB memory depth Long-term data recording with additional battery module
• 8-bit AD converter

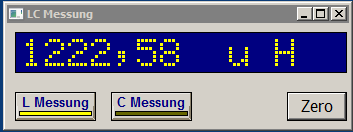

Specifications LC Measuring system

• 0.01 pf capacitor to 10uf  1% measurement error
• 0,001uH to 100mH inductance  1% measurement error
• autoranging
• self-calibrating

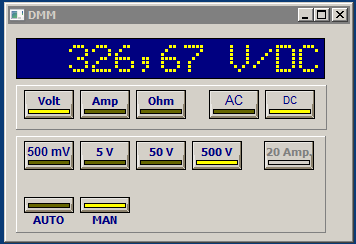

Specifications DVM

• Dual Slope ADC resolution 55000 points
• 6 measurements per second
• automatic / manual range selection
